ncine::AppConfiguration Class Reference

The class storing initialization settings for an nCine application. More...

#include <AppConfiguration.h>

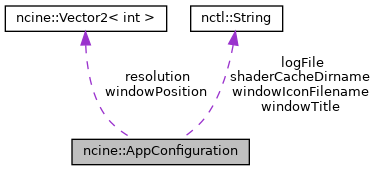

Collaboration diagram for ncine::AppConfiguration:

Public Member Functions
	AppConfiguration ()
	Default constructor setting the defaults.
const nctl::String &	dataPath () const
nctl::String &	dataPath ()
bool	glCoreProfile () const
bool	glForwardCompatible () const
unsigned int	glMajorVersion () const
unsigned int	glMinorVersion () const
float	profileTextUpdateTime () const
int	argc () const
const char *	argv (int index) const
void	readEnvVariables ()
	Reads the environment variables that can override the user ones.
void	logEnvVariables () const
	Logs the environment variables that have overridden the user ones.

Public Attributes
nctl::String	logFile
	The path for the log file.
ILogger::LogLevel	consoleLogLevel
	The logging level for messages printed on the console.
ILogger::LogLevel	fileLogLevel
	The logging level for messages written in the log file.
float	frameTimerLogInterval
	The interval for frame timer accumulation average and log.
Vector2i	resolution
	The window size or the resolution of the closest video mode if going full screen.
float	refreshRate
	The refresh rate of the screen mode used to go in full screen.
Vector2i	windowPosition
	The window position coordinates in the virtual screen made of all the connected monitors.
bool	fullScreen
	The flag is true if the application is going to be in full screen mode.
bool	resizable
	The flag is true if the window is going to be resizable.
bool	windowScaling
	The flag is true if the window size is automatically scaled according to the display factor.
unsigned int	frameLimit
	The maximum number of frames to render per second or 0 for no limit.
nctl::String	windowTitle
	The window title.
nctl::String	windowIconFilename
	The window icon filename.
bool	useBufferMapping
	The flag is true if mapping is used to update OpenGL buffers.
bool	deferShaderQueries
	The flag is true when error checking and introspection of shader programs are deferred to first use.
unsigned int	fixedBatchSize
	Fixed size of render commands to be collected for batching on Emscripten and ANGLE.
bool	useBinaryShaderCache
	The flag is true if the shader cache is enabled to load and save binary shader programs.
nctl::String	shaderCacheDirname
	The directory name (not the complete path) for the binary shaders cache.
bool	compileBatchedShadersTwice
	The flag is true if, on devices with UBOs smaller than 64 KB, batched shaders will be compiled twice to identify their maximum batch size.
unsigned long	vboSize
	The maximum size in bytes for each VBO collecting geometry data.
unsigned long	iboSize
	The maximum size in bytes for each IBO collecting index data.
unsigned int	vaoPoolSize
	The maximum size for the pool of VAOs.
unsigned int	renderCommandPoolSize
	The initial size for the pool of render commands.
unsigned int	outputAudioFrequency
	The output frequency of the audio system.
unsigned int	monoAudioSources
	The number of mono audio sources.
unsigned int	stereoAudioSources
	The number of stereo audio sources.
bool	withDebugOverlay
	The flag is true if the debug overlay is enabled.
bool	withAudio
	The flag is true if the audio subsystem is enabled.
bool	withThreads
	The flag is true if the threading subsystem is enabled.
bool	withScenegraph
	The flag is true if the scenegraph based rendering is enabled.
bool	withVSync
	The flag is true if the vertical synchronization is enabled.
bool	withGlDebugContext
	The flag is true if the OpenGL debug context is enabled.
bool	withConsoleColors
	The flag is true if console log messages should use colors.

Static Public Attributes
static const int	WindowPositionIgnore = 2147483647

Friends
class	PCApplication

Detailed Description

The class storing initialization settings for an nCine application.

Member Function Documentation

argc()

int ncine::AppConfiguration::argc ( ) const

inline

Returns

The number of arguments passed on the command line

argv()

const char * ncine::AppConfiguration::argv

(

int

index

)

const

Returns

The selected argument from the ones passed on the command line

dataPath() [1/2]

nctl::String & ncine::AppConfiguration::dataPath

(

)

Returns

The path for the application to load data from

Allows to set the value of the static field FileSystem::dataPath_.

dataPath() [2/2]

const nctl::String & ncine::AppConfiguration::dataPath

(

)

const

Returns

The constant path for the application to load data from

glCoreProfile()

bool ncine::AppConfiguration::glCoreProfile ( ) const

inline

Returns

True if the OpenGL profile is going to be core

glForwardCompatible()

bool ncine::AppConfiguration::glForwardCompatible ( ) const

inline

Returns

True if the OpenGL context is going to be forward compatible

glMajorVersion()

unsigned int ncine::AppConfiguration::glMajorVersion ( ) const

inline

Returns

The major version number of the OpenGL context

glMinorVersion()

unsigned int ncine::AppConfiguration::glMinorVersion ( ) const

inline

Returns

The minor version number of the OpenGL context

profileTextUpdateTime()

float ncine::AppConfiguration::profileTextUpdateTime ( ) const

inline

Returns

The update time in seconds for the profile text nodes

Member Data Documentation

compileBatchedShadersTwice

bool ncine::AppConfiguration::compileBatchedShadersTwice

The flag is true if, on devices with UBOs smaller than 64 KB, batched shaders will be compiled twice to identify their maximum batch size.

Note

When enabled, compatibility with such devices will increase because shaders with standard batch size will not compile

deferShaderQueries

bool ncine::AppConfiguration::deferShaderQueries

The flag is true when error checking and introspection of shader programs are deferred to first use.

Note

The value is only taken into account when the scenegraph is being used

fixedBatchSize

unsigned int ncine::AppConfiguration::fixedBatchSize

Fixed size of render commands to be collected for batching on Emscripten and ANGLE.

Note

Increasing this value too much might negatively affect batching shaders compilation time. A value of zero restores the default behavior of non fixed size for batches.

Warning

If this value is changed, the binary shader cache needs to be manually cleared.

monoAudioSources

unsigned int ncine::AppConfiguration::monoAudioSources

The number of mono audio sources.

Note

Set this value to zero to request the default number of mono audio sources.

outputAudioFrequency

unsigned int ncine::AppConfiguration::outputAudioFrequency

The output frequency of the audio system.

Note

Set this value to zero for the default output frequency of the device.

refreshRate

float ncine::AppConfiguration::refreshRate

The refresh rate of the screen mode used to go in full screen.

Note

If it is zero or negative, when requesting a full screen mode the current refresh rate will not be changed.

resolution

Vector2i ncine::AppConfiguration::resolution

The window size or the resolution of the closest video mode if going full screen.

Note

If either x or y are zero or negative, the application will go in full screen at the current screen resolution.

stereoAudioSources

unsigned int ncine::AppConfiguration::stereoAudioSources

The number of stereo audio sources.

Note

Set this value to zero to request the default number of stereo audio sources.

useBinaryShaderCache

bool ncine::AppConfiguration::useBinaryShaderCache

The flag is true if the shader cache is enabled to load and save binary shader programs.

Note

Even if the flag is true, the functionality might still not be supported by the OpenGL context.

windowPosition

Vector2i ncine::AppConfiguration::windowPosition

The window position coordinates in the virtual screen made of all the connected monitors.

Note

It can also be used to go full screen on a monitor that is not the primary one of the system.

The WindowPositionIgnore value can be used in either or both dimensions when a specific position is not needed.

---

The documentation for this class was generated from the following files:

• include/ncine/AppConfiguration.h
• src/AppConfiguration.cpp
