ncine::DrawableNode Class Reference

A class for objects that can be drawn through the render queue. More...

#include <DrawableNode.h>

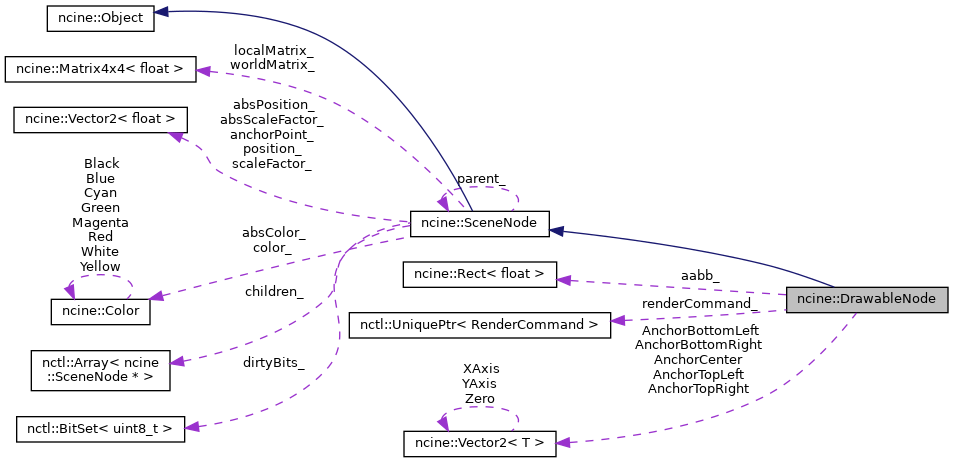

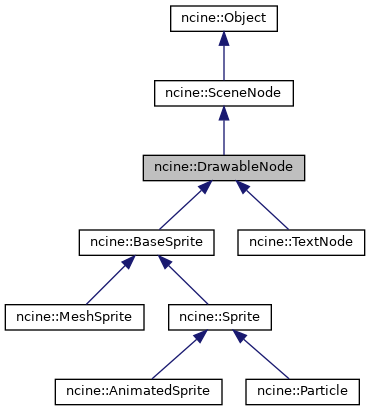

Inheritance diagram for ncine::DrawableNode:

Collaboration diagram for ncine::DrawableNode:

Public Types
enum class	BlendingPreset {   DISABLED , ALPHA , PREMULTIPLIED_ALPHA , ADDITIVE ,   MULTIPLY }
	Presets for blending factors. More...
enum class	BlendingFactor {   ZERO , ONE , SRC_COLOR , ONE_MINUS_SRC_COLOR ,   DST_COLOR , ONE_MINUS_DST_COLOR , SRC_ALPHA , ONE_MINUS_SRC_ALPHA ,   DST_ALPHA , ONE_MINUS_DST_ALPHA , CONSTANT_COLOR , ONE_MINUS_CONSTANT_COLOR ,   CONSTANT_ALPHA , ONE_MINUS_CONSTANT_ALPHA , SRC_ALPHA_SATURATE }
	OpenGL blending factors.
Public Types inherited from ncine::SceneNode
enum class	VisitOrderState { ENABLED , DISABLED , SAME_AS_PARENT }
Public Types inherited from ncine::Object
enum class	ObjectType {   BASE = 0 , TEXTURE , SHADER , SCENENODE ,   SPRITE , MESH_SPRITE , ANIMATED_SPRITE , PARTICLE ,   PARTICLE_SYSTEM , FONT , TEXTNODE , AUDIOBUFFER ,   AUDIOBUFFER_PLAYER , AUDIOSTREAM_PLAYER }
	Object types.

Public Member Functions
	DrawableNode (SceneNode *parent, float xx, float yy)
	Constructor for a drawable node with a parent and a specified relative position.
	DrawableNode (SceneNode *parent, const Vector2f &position)
	Constructor for a drawable node with a parent and a specified relative position as a vector.
	DrawableNode (SceneNode *parent)
	Constructor for a drawable node with a parent and positioned in the relative origin.
	DrawableNode ()
	Constructor for a drawable node with no parent and positioned in the origin.
	DrawableNode (DrawableNode &&)
	Default move constructor.
DrawableNode &	operator= (DrawableNode &&)
	Default move assignment operator.
bool	draw (RenderQueue &renderQueue) override
	Updates the draw command and adds it to the queue.
virtual float	width () const
	Returns the width of the node area.
virtual float	height () const
	Returns the height of the node area.
Vector2f	size () const
	Returns the size of the node area.
virtual float	absWidth () const
	Returns the absolute width of the node area.
virtual float	absHeight () const
	Returns the absolute height of the node area.
Vector2f	absSize () const
	Returns the absolute size of the node area.
Vector2f	anchorPoint () const
	Gets the transformation anchor point.
void	setAnchorPoint (float xx, float yy)
	Sets the transformation anchor point.
void	setAnchorPoint (const Vector2f &point)
	Sets the transformation anchor point with a Vector2f
bool	isBlendingEnabled () const
	Returns true if the node renders with blending enabled.
void	setBlendingEnabled (bool blendingEnabled)
	Sets the blending state for node rendering.
BlendingFactor	srcBlendingFactor () const
	Returns the source blending factor.
BlendingFactor	destBlendingFactor () const
	Returns the destination blending factor.
void	setBlendingPreset (BlendingPreset blendingPreset)
	Sets a blending preset for source and destination blending factors.
void	setBlendingFactors (BlendingFactor srcBlendingFactor, BlendingFactor destBlendingFactor)
	Sets a specific source and destination blending factors.
unsigned long int	lastFrameRendered () const
	Returns the last frame in which any of the viewports have rendered this node (node was not culled)
Rectf	aabb () const
	Returns the axis-aligned bounding box of the node area in the last frame.
Public Member Functions inherited from ncine::SceneNode
	SceneNode (SceneNode *parent, float x, float y)
	Constructor for a node with a parent and a specified relative position.
	SceneNode (SceneNode *parent, const Vector2f &position)
	Constructor for a node with a parent and a specified relative position as a vector.
	SceneNode (SceneNode *parent)
	Constructor for a node with a parent and positioned in the relative origin.
	SceneNode ()
	Constructor for a node with no parent and positioned in the origin.
	~SceneNode () override
	The destructor will delete every child node.
	SceneNode (SceneNode &&other)
	Move constructor.
SceneNode &	operator= (SceneNode &&other)
	Move assignment operator.
SceneNode	clone () const
	Returns a copy of this object.
const SceneNode *	parent () const
	Returns the parent as a constant node, if there is any.
SceneNode *	parent ()
	Returns the parent node, if there is any.
bool	setParent (SceneNode *parentNode)
	Sets the parent node.
const nctl::Array< SceneNode * > &	children ()
	Returns the array of child nodes.
const nctl::Array< const SceneNode * > &	children () const
	Returns an array of constant child nodes.
bool	addChildNode (SceneNode *childNode)
	Adds a node as a child of this one.
bool	removeChildNode (SceneNode *childNode)
	Removes a child of this node, without reparenting nephews.
bool	removeChildNodeAt (unsigned int index)
	Removes the child at the specified index, without reparenting nephews.
bool	removeAllChildrenNodes ()
	Removes all children, without reparenting nephews.
bool	unlinkChildNode (SceneNode *childNode)
	Removes a child of this node reparenting nephews as children.
unsigned int	childOrderIndex () const
	Returns the child order index of this node or zero if it does not have a parent.
bool	swapChildrenNodes (unsigned int firstIndex, unsigned int secondIndex)
	Swaps two children at the specified indices.
bool	swapNodeForward ()
	Brings this node one node forward in the parent's list of children.
bool	swapNodeBack ()
	Brings this node one node back in the parent's list of children.
enum VisitOrderState	visitOrderState () const
	Returns true if the node visit order is used together with the layer.
void	setVisitOrderState (enum VisitOrderState visitOrderState)
	Enables the use of the node visit order together with the layer.
uint16_t	visitOrderIndex () const
	Returns the visit drawing order of the node.
virtual void	update (float frameTime)
	Called once every frame to update the node.
virtual void	visit (RenderQueue &renderQueue, unsigned int &visitOrderIndex)
	Draws the node and visits its children.
bool	isUpdateEnabled () const
	Returns true if the node is updating.
void	setUpdateEnabled (bool updateEnabled)
	Enables or disables node updating.
bool	isDrawEnabled () const
	Returns true if the node is drawing.
void	setDrawEnabled (bool drawEnabled)
	Enables or disables node drawing.
bool	isEnabled () const
	Returns true if the node is both updating and drawing.
void	setEnabled (bool isEnabled)
	Enables or disables both node updating and drawing.
Vector2f	position () const
	Returns node position relative to its parent.
Vector2f	absPosition () const
	Returns absolute node position.
void	setPosition (float x, float y)
	Sets the node position through two coordinates.
void	setPosition (const Vector2f &position)
	Sets the node position through a vector.
void	setPositionX (float x)
	Sets the X coordinate of the node position.
void	setPositionY (float y)
	Sets the Y coordinate of the node position.
void	move (float x, float y)
	Moves the node based on two offsets.
void	move (const Vector2f &position)
	Adds a move vector to the node current position.
void	moveX (float x)
	Moves the node by an offset on the X axis.
void	moveY (float y)
	Moves the node by an offset on the Y axis.
Vector2f	absAnchorPoint () const
	Gets the absolute transformation anchor point in pixels.
void	setAbsAnchorPoint (float x, float y)
	Sets the absolute transformation anchor point in pixels.
void	setAbsAnchorPoint (const Vector2f &point)
	Sets the absolute transformation anchor point in pixels with a Vector2f
const Vector2f &	scale () const
	Gets the node scale factors.
const Vector2f &	absScale () const
	Gets the node absolute scale factors.
void	setScale (float scaleFactor)
	Scales the node size both horizontally and vertically.
void	setScale (float scaleFactorX, float scaleFactorY)
	Scales the node size both horizontally and vertically.
void	setScale (const Vector2f &scaleFactor)
	Scales the node size both horizontally and vertically with a Vector2f
float	rotation () const
	Gets the node rotation in degrees.
float	absRotation () const
	Gets the node absolute rotation in degrees.
void	setRotation (float rotation)
	Sets the node rotation in degrees.
Color	color () const
	Gets the node color.
Color	absColor () const
	Gets the node absolute color.
void	setColor (Color color)
	Sets the node color through a Color object.
void	setColorF (Colorf color)
	Sets the node color through a Colorf object.
void	setColor (unsigned char red, unsigned char green, unsigned char blue, unsigned char alpha)
	Sets the node color through unsigned char components.
void	setColorF (float red, float green, float blue, float alpha)
	Sets the node color through float components.
unsigned char	alpha () const
	Gets the node alpha.
unsigned char	absAlpha () const
	Gets the node absolute alpha.
void	setAlpha (unsigned char alpha)
	Sets the node alpha through an unsigned char component.
void	setAlphaF (float alpha)
	Sets the node alpha through a float component.
uint16_t	layer () const
	Gets the node rendering layer.
uint16_t	absLayer () const
	Gets the node absolute rendering layer.
void	setLayer (uint16_t layer)
	Sets the node rendering layer.
const Matrix4x4f &	worldMatrix () const
	Gets the node world matrix.
void	setWorldMatrix (const Matrix4x4f &worldMatrix)
	Sets the node world matrix (only useful when called inside onPostUpdate())
const Matrix4x4f &	localMatrix () const
	Gets the node local matrix.
void	setLocalMatrix (const Matrix4x4f &localMatrix)
	Sets the node local matrix.
bool	deleteChildrenOnDestruction () const
	Gets the delete children on destruction flag.
void	setDeleteChildrenOnDestruction (bool shouldDeleteChildrenOnDestruction)
	Sets the delete children on destruction flag.
unsigned long int	lastFrameUpdated () const
	Returns the last frame in which any of the viewports have updated this node.
Public Member Functions inherited from ncine::Object
	Object (ObjectType type)
	Constructs an object with a specified type and adds it to the index.
	Object (ObjectType type, const char *name)
	Constructs an object with a specified type and name and adds it to the index.
virtual	~Object ()
	Removes an object from the index and then destroys it.
	Object (Object &&other)
	Move constructor.
Object &	operator= (Object &&other)
	Move assignment operator.
unsigned int	id () const
	Returns the object identification number.
ObjectType	type () const
	Returns the object type (RTTI)
const char *	name () const
	Returns the object name.
void	setName (const char *name)
	Sets the object name.

Static Public Attributes
static const Vector2f	AnchorCenter
static const Vector2f	AnchorBottomLeft
static const Vector2f	AnchorTopLeft
static const Vector2f	AnchorBottomRight
static const Vector2f	AnchorTopRight
Static Public Attributes inherited from ncine::SceneNode
static const float	MinRotation = 0.5f
	The minimum amount of rotation to trigger a sine and cosine calculation.
Static Public Attributes inherited from ncine::Object
static const unsigned int	MaxNameLength = 128
	Maximum length for an object name.

Protected Member Functions
void	updateAnchorPoint ()
	Recomputes the absolute anchor point from the fractional value and the current width and height.
void	absAnchorPointHasChanged () override
	Stops treating the anchor point as a fractional value after an explicit setAbsAnchorPoint()
virtual void	updateAabb ()
	Calculates updated values for the AABB.
void	updateCulling ()
	Called by each viewport update method to update a node culling state.
	DrawableNode (const DrawableNode &other)
	Protected copy constructor used to clone objects.
virtual void	shaderHasChanged ()=0
	Performs the required tasks upon a change to the shader.
virtual void	updateRenderCommand ()=0
	Updates the render command.
Protected Member Functions inherited from ncine::SceneNode
SceneNode &	operator= (const SceneNode &)=delete
	Deleted assignment operator.
	SceneNode (const SceneNode &other)
	Protected copy constructor used to clone objects.
void	swapChildPointer (SceneNode *first, SceneNode *second)
	Swaps the child pointer of a parent when moving an object.
virtual void	transform ()
Protected Member Functions inherited from ncine::Object
	Object (const Object &other)
	Protected copy constructor used to clone objects.

Protected Attributes
float	width_
	Node width in pixel.
float	height_
	Node height in pixel.
Vector2f	anchorPointFraction_
	The anchor point as a 0..1 fraction of width and height, as last set by setAnchorPoint()
bool	anchorIsAbsolute_
	True after setAbsAnchorPoint() last set the anchor point, rather than setAnchorPoint()
nctl::UniquePtr< RenderCommand >	renderCommand_
	The render command class associated with this node.
unsigned long int	lastFrameRendered_
	The last frame any viewports rendered this node.
Rectf	aabb_
	Axis-aligned bounding box of the node area.
Protected Attributes inherited from ncine::SceneNode
bool	updateEnabled_
bool	drawEnabled_
SceneNode *	parent_
	A pointer to the parent node.
nctl::Array< SceneNode * >	children_
	The array of child nodes.
unsigned int	childOrderIndex_
	The order index of this node among its siblings.
bool	withVisitOrder_
	When enabled the visit order is used to resolve the drawing order of same layer nodes.
enum VisitOrderState	visitOrderState_
	The visit order state of this node.
uint16_t	visitOrderIndex_
	The visit order index of this node.
Vector2f	position_
	The node relative position.
Vector2f	anchorPoint_
Vector2f	scaleFactor_
	Horizontal and vertical scale factors for node size.
float	rotation_
	Degrees for clock-wise node rotation in degrees.
Color	color_
	Node color for transparency and translucency.
uint16_t	layer_
	The node rendering layer.
Vector2f	absPosition_
	Absolute position as calculated by the transform() function.
Vector2f	absScaleFactor_
	Absolute horizontal and vertical scale factors as calculated by the transform() function.
float	absRotation_
	Absolute node rotation as calculated by the transform() function.
Color	absColor_
	Absolute node color as calculated by the transform() function.
uint16_t	absLayer_
	Absolute node rendering layer as calculated by the transform() function.
Matrix4x4f	worldMatrix_
	World transformation matrix (calculated from local and parent's world)
Matrix4x4f	localMatrix_
	Local transformation matrix.
bool	shouldDeleteChildrenOnDestruction_
	A flag indicating whether the destructor should also delete all children.
nctl::BitSet< uint8_t >	dirtyBits_
	Bitset that stores the various dirty states bits.
unsigned long int	lastFrameUpdated_
	The last frame any viewport updated this node.
Protected Attributes inherited from ncine::Object
ObjectType	type_
	Object type.

Friends
class	ShaderState
class	Viewport

Additional Inherited Members
Static Public Member Functions inherited from ncine::SceneNode
static ObjectType	sType ()
Static Public Member Functions inherited from ncine::Object
static ObjectType	sType ()
	Static method to return class type.
template<class T >
static T *	fromId (unsigned int id)
	Returns a casted pointer to the object with the specified id, if any exists.
Protected Types inherited from ncine::SceneNode
enum	DirtyBitPositions {   TransformationBit = 0 , ColorBit = 1 , SizeBit = 2 , TextureBit = 3 ,   AabbBit = 4 , TransformationUploadBit = 5 , ColorUploadBit = 6 }
	Bit positions inside the dirty bitset.

Detailed Description

A class for objects that can be drawn through the render queue.

Member Enumeration Documentation

BlendingPreset

enum class ncine::DrawableNode::BlendingPreset

strong

Presets for blending factors.

Enumerator
DISABLED	uses GL_ONE and GL_ZERO
ALPHA	uses GL_SRC_ALPHA and GL_ONE_MINUS_SRC_ALPHA
PREMULTIPLIED_ALPHA	uses GL_ONE and GL_ONE_MINUS_SRC_ALPHA
ADDITIVE	uses GL_SRC_ALPHA and GL_ONE
MULTIPLY	uses GL_DST_COLOR and GL_ZERO

Member Function Documentation

absAnchorPointHasChanged()

void ncine::DrawableNode::absAnchorPointHasChanged ( )

inlineoverrideprotectedvirtual

Stops treating the anchor point as a fractional value after an explicit setAbsAnchorPoint()

Reimplemented from ncine::SceneNode.

absHeight()

virtual float ncine::DrawableNode::absHeight ( ) const

inlinevirtual

Returns the absolute height of the node area.

Reimplemented in ncine::TextNode.

absWidth()

virtual float ncine::DrawableNode::absWidth ( ) const

inlinevirtual

Returns the absolute width of the node area.

Reimplemented in ncine::TextNode.

draw()

bool ncine::DrawableNode::draw ( RenderQueue &  renderQueue )

overridevirtual

Updates the draw command and adds it to the queue.

Reimplemented from ncine::SceneNode.

Reimplemented in ncine::TextNode.

height()

virtual float ncine::DrawableNode::height ( ) const

inlinevirtual

Returns the height of the node area.

Reimplemented in ncine::TextNode.

setAnchorPoint()

void ncine::DrawableNode::setAnchorPoint	(	float	xx,
		float	yy
	)

Sets the transformation anchor point.

Note

This method sets the anchor point relative to the node width and height. To set the anchor point in pixels use setAbsAnchorPoint() instead.

shaderHasChanged()

virtual void ncine::DrawableNode::shaderHasChanged ( )

protectedpure virtual

Performs the required tasks upon a change to the shader.

Implemented in ncine::BaseSprite.

updateAnchorPoint()

void ncine::DrawableNode::updateAnchorPoint ( )

protected

Recomputes the absolute anchor point from the fractional value and the current width and height.

Note

Does nothing if setAbsAnchorPoint() set the anchor point more recently than setAnchorPoint() did, so that an explicit absolute anchor point survives a later content/size change instead of being overwritten by a fraction.

updateRenderCommand()

virtual void ncine::DrawableNode::updateRenderCommand ( )

protectedpure virtual

Updates the render command.

Implemented in ncine::BaseSprite.

width()

virtual float ncine::DrawableNode::width ( ) const

inlinevirtual

Returns the width of the node area.

Reimplemented in ncine::TextNode.

Member Data Documentation

anchorIsAbsolute_

bool ncine::DrawableNode::anchorIsAbsolute_

protected

True after setAbsAnchorPoint() last set the anchor point, rather than setAnchorPoint()

Note

While true, updateAnchorPoint() leaves the explicit absolute anchor point alone instead of overwriting it with one derived from the fractional value.

anchorPointFraction_

Vector2f ncine::DrawableNode::anchorPointFraction_

protected

The anchor point as a 0..1 fraction of width and height, as last set by setAnchorPoint()

Note

Kept around so updateAnchorPoint() can be called again whenever a subclass changes width or height.

---

The documentation for this class was generated from the following files:

• include/ncine/DrawableNode.h
• src/graphics/DrawableNode.cpp
