The base class for the transformation nodes hierarchy. More...

#include <SceneNode.h>

Inheritance diagram for ncine::SceneNode:

[legend]

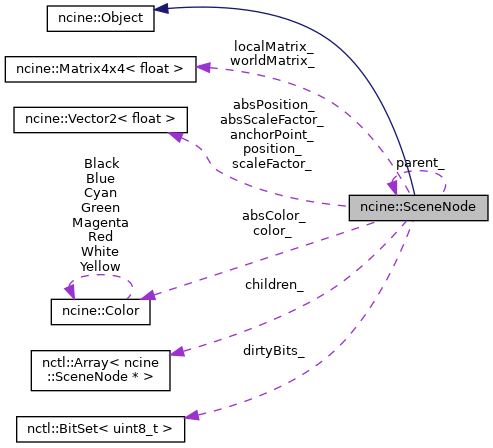

Collaboration diagram for ncine::SceneNode:

[legend]

Public Types
enum class	VisitOrderState { ENABLED , DISABLED , SAME_AS_PARENT }

Public Types inherited from ncine::Object
enum class	ObjectType { BASE = 0 , TEXTURE , SHADER , SCENENODE , SPRITE , MESH_SPRITE , ANIMATED_SPRITE , PARTICLE , PARTICLE_SYSTEM , FONT , TEXTNODE , AUDIOBUFFER , AUDIOBUFFER_PLAYER , AUDIOSTREAM_PLAYER }
	Object types.

Public Member Functions
	SceneNode (SceneNode *parent, float x, float y)
	Constructor for a node with a parent and a specified relative position.

	SceneNode (SceneNode *parent, const Vector2f &position)
	Constructor for a node with a parent and a specified relative position as a vector.

	SceneNode (SceneNode *parent)
	Constructor for a node with a parent and positioned in the relative origin.

	SceneNode ()
	Constructor for a node with no parent and positioned in the origin.

	~SceneNode () override
	The destructor will delete every child node.

	SceneNode (SceneNode &&other)
	Move constructor.

SceneNode &	operator= (SceneNode &&other)
	Move assignment operator.

SceneNode	clone () const
	Returns a copy of this object.

const SceneNode *	parent () const
	Returns the parent as a constant node, if there is any.

SceneNode *	parent ()
	Returns the parent node, if there is any.

bool	setParent (SceneNode *parentNode)
	Sets the parent node.

const nctl::Array< SceneNode * > &	children ()
	Returns the array of child nodes.

const nctl::Array< const SceneNode * > &	children () const
	Returns an array of constant child nodes.

bool	addChildNode (SceneNode *childNode)
	Adds a node as a child of this one.

bool	removeChildNode (SceneNode *childNode)
	Removes a child of this node, without reparenting nephews.

bool	removeChildNodeAt (unsigned int index)
	Removes the child at the specified index, without reparenting nephews.

bool	removeAllChildrenNodes ()
	Removes all children, without reparenting nephews.

bool	unlinkChildNode (SceneNode *childNode)
	Removes a child of this node reparenting nephews as children.

unsigned int	childOrderIndex () const
	Returns the child order index of this node or zero if it does not have a parent.

bool	swapChildrenNodes (unsigned int firstIndex, unsigned int secondIndex)
	Swaps two children at the specified indices.

bool	swapNodeForward ()
	Brings this node one node forward in the parent's list of children.

bool	swapNodeBack ()
	Brings this node one node back in the parent's list of children.

enum VisitOrderState	visitOrderState () const
	Returns true if the node visit order is used together with the layer.

void	setVisitOrderState (enum VisitOrderState visitOrderState)
	Enables the use of the node visit order together with the layer.

uint16_t	visitOrderIndex () const
	Returns the visit drawing order of the node.

virtual void	update (float frameTime)
	Called once every frame to update the node.

virtual void	visit (RenderQueue &renderQueue, unsigned int &visitOrderIndex)
	Draws the node and visits its children.

virtual bool	draw (RenderQueue &renderQueue)
	Renders the node.

bool	isUpdateEnabled () const
	Returns true if the node is updating.

void	setUpdateEnabled (bool updateEnabled)
	Enables or disables node updating.

bool	isDrawEnabled () const
	Returns true if the node is drawing.

void	setDrawEnabled (bool drawEnabled)
	Enables or disables node drawing.

bool	isEnabled () const
	Returns true if the node is both updating and drawing.

void	setEnabled (bool isEnabled)
	Enables or disables both node updating and drawing.

Vector2f	position () const
	Returns node position relative to its parent.

Vector2f	absPosition () const
	Returns absolute node position.

void	setPosition (float x, float y)
	Sets the node position through two coordinates.

void	setPosition (const Vector2f &position)
	Sets the node position through a vector.

void	setPositionX (float x)
	Sets the X coordinate of the node position.

void	setPositionY (float y)
	Sets the Y coordinate of the node position.

void	move (float x, float y)
	Moves the node based on two offsets.

void	move (const Vector2f &position)
	Adds a move vector to the node current position.

void	moveX (float x)
	Moves the node by an offset on the X axis.

void	moveY (float y)
	Moves the node by an offset on the Y axis.

Vector2f	absAnchorPoint () const
	Gets the absolute transformation anchor point in pixels.

void	setAbsAnchorPoint (float x, float y)
	Sets the absolute transformation anchor point in pixels.

void	setAbsAnchorPoint (const Vector2f &point)
	Sets the absolute transformation anchor point in pixels with a `Vector2f`

const Vector2f &	scale () const
	Gets the node scale factors.

const Vector2f &	absScale () const
	Gets the node absolute scale factors.

void	setScale (float scaleFactor)
	Scales the node size both horizontally and vertically.

void	setScale (float scaleFactorX, float scaleFactorY)
	Scales the node size both horizontally and vertically.

void	setScale (const Vector2f &scaleFactor)
	Scales the node size both horizontally and vertically with a `Vector2f`

float	rotation () const
	Gets the node rotation in degrees.

float	absRotation () const
	Gets the node absolute rotation in degrees.

void	setRotation (float rotation)
	Sets the node rotation in degrees.

Color	color () const
	Gets the node color.

Color	absColor () const
	Gets the node absolute color.

void	setColor (Color color)
	Sets the node color through a `Color` object.

void	setColorF (Colorf color)
	Sets the node color through a `Colorf` object.

void	setColor (unsigned char red, unsigned char green, unsigned char blue, unsigned char alpha)
	Sets the node color through unsigned char components.

void	setColorF (float red, float green, float blue, float alpha)
	Sets the node color through float components.

unsigned char	alpha () const
	Gets the node alpha.

unsigned char	absAlpha () const
	Gets the node absolute alpha.

void	setAlpha (unsigned char alpha)
	Sets the node alpha through an unsigned char component.

void	setAlphaF (float alpha)
	Sets the node alpha through a float component.

uint16_t	layer () const
	Gets the node rendering layer.

uint16_t	absLayer () const
	Gets the node absolute rendering layer.

void	setLayer (uint16_t layer)
	Sets the node rendering layer.

const Matrix4x4f &	worldMatrix () const
	Gets the node world matrix.

void	setWorldMatrix (const Matrix4x4f &worldMatrix)
	Sets the node world matrix (only useful when called inside `onPostUpdate()`)

const Matrix4x4f &	localMatrix () const
	Gets the node local matrix.

void	setLocalMatrix (const Matrix4x4f &localMatrix)
	Sets the node local matrix.

bool	deleteChildrenOnDestruction () const
	Gets the delete children on destruction flag.

void	setDeleteChildrenOnDestruction (bool shouldDeleteChildrenOnDestruction)
	Sets the delete children on destruction flag.

unsigned long int	lastFrameUpdated () const
	Returns the last frame in which any of the viewports have updated this node.

Public Member Functions inherited from ncine::Object
	Object (ObjectType type)
	Constructs an object with a specified type and adds it to the index.

	Object (ObjectType type, const char *name)
	Constructs an object with a specified type and name and adds it to the index.

virtual	~Object ()
	Removes an object from the index and then destroys it.

	Object (Object &&other)
	Move constructor.

Object &	operator= (Object &&other)
	Move assignment operator.

unsigned int	id () const
	Returns the object identification number.

ObjectType	type () const
	Returns the object type (RTTI)

const char *	name () const
	Returns the object name.

void	setName (const char *name)
	Sets the object name.

Static Public Member Functions
static ObjectType	sType ()

Static Public Member Functions inherited from ncine::Object
static ObjectType	sType ()
	Static method to return class type.

template<class T >
static T *	fromId (unsigned int id)
	Returns a casted pointer to the object with the specified id, if any exists.

Static Public Attributes
static const float	MinRotation = 0.5f
	The minimum amount of rotation to trigger a sine and cosine calculation.

Static Public Attributes inherited from ncine::Object
static const unsigned int	MaxNameLength = 128
	Maximum length for an object name.

Protected Types
enum	DirtyBitPositions { TransformationBit = 0 , ColorBit = 1 , SizeBit = 2 , TextureBit = 3 , AabbBit = 4 , TransformationUploadBit = 5 , ColorUploadBit = 6 }
	Bit positions inside the dirty bitset.

Protected Member Functions
SceneNode &	operator= (const SceneNode &)=delete
	Deleted assignment operator.

	SceneNode (const SceneNode &other)
	Protected copy constructor used to clone objects.

void	swapChildPointer (SceneNode first, SceneNode second)
	Swaps the child pointer of a parent when moving an object.

virtual void	transform ()

Protected Member Functions inherited from ncine::Object
	Object (const Object &other)
	Protected copy constructor used to clone objects.

Protected Attributes
bool	updateEnabled_

bool	drawEnabled_

SceneNode *	parent_
	A pointer to the parent node.

nctl::Array< SceneNode * >	children_
	The array of child nodes.

unsigned int	childOrderIndex_
	The order index of this node among its siblings.

bool	withVisitOrder_
	When enabled the visit order is used to resolve the drawing order of same layer nodes.

enum VisitOrderState	visitOrderState_
	The visit order state of this node.

uint16_t	visitOrderIndex_
	The visit order index of this node.

Vector2f	position_
	The node relative position.

Vector2f	anchorPoint_

Vector2f	scaleFactor_
	Horizontal and vertical scale factors for node size.

float	rotation_
	Degrees for clock-wise node rotation in degrees.

Color	color_
	Node color for transparency and translucency.

uint16_t	layer_
	The node rendering layer.

Vector2f	absPosition_
	Absolute position as calculated by the `transform()` function.

Vector2f	absScaleFactor_
	Absolute horizontal and vertical scale factors as calculated by the `transform()` function.

float	absRotation_
	Absolute node rotation as calculated by the `transform()` function.

Color	absColor_
	Absolute node color as calculated by the `transform()` function.

uint16_t	absLayer_
	Absolute node rendering layer as calculated by the `transform()` function.

Matrix4x4f	worldMatrix_
	World transformation matrix (calculated from local and parent's world)

Matrix4x4f	localMatrix_
	Local transformation matrix.

bool	shouldDeleteChildrenOnDestruction_
	A flag indicating whether the destructor should also delete all children.

nctl::BitSet< uint8_t >	dirtyBits_
	Bitset that stores the various dirty states bits.

unsigned long int	lastFrameUpdated_
	The last frame any viewport updated this node.

Protected Attributes inherited from ncine::Object
ObjectType	type_
	Object type.

Detailed Description

The base class for the transformation nodes hierarchy.

Constructor & Destructor Documentation

◆ SceneNode() [1/3]

ncine::SceneNode::SceneNode	(	SceneNode *	parent,
		float	x,
		float	y
	)

Constructor for a node with a parent and a specified relative position.

Parameters

parent The parent can be nullptr

◆ SceneNode() [2/3]

ncine::SceneNode::SceneNode	(	SceneNode *	parent,
		const Vector2f &	position
	)

Constructor for a node with a parent and a specified relative position as a vector.

Parameters

parent The parent can be nullptr

◆ SceneNode() [3/3]

ncine::SceneNode::SceneNode ( SceneNode * parent )

explicit

Constructor for a node with a parent and positioned in the relative origin.

Parameters

parent The parent can be nullptr

Member Function Documentation

◆ absLayer()

uint16_t ncine::SceneNode::absLayer ( ) const

inline

Gets the node absolute rendering layer.

Note: The final layer value is inherited from the parent if the node layer is 0.

◆ addChildNode()

bool ncine::SceneNode::addChildNode ( SceneNode * childNode )

Adds a node as a child of this one.

Returns: True if the node has been added

◆ childOrderIndex()

unsigned int ncine::SceneNode::childOrderIndex ( ) const

Returns the child order index of this node or zero if it does not have a parent.

Returns: If the node has no parent then 0 is returned

◆ deleteChildrenOnDestruction()

bool ncine::SceneNode::deleteChildrenOnDestruction ( ) const

inline

Gets the delete children on destruction flag.

If the flag is true the children are deleted upon node destruction.

◆ draw()

virtual bool ncine::SceneNode::draw ( RenderQueue & renderQueue )

inlinevirtual

Renders the node.

Reimplemented in ncine::DrawableNode, and ncine::TextNode.

◆ removeAllChildrenNodes()

bool ncine::SceneNode::removeAllChildrenNodes ( )

Removes all children, without reparenting nephews.

Returns: True if there were at least one node to remove

◆ removeChildNode()

bool ncine::SceneNode::removeChildNode ( SceneNode * childNode )

Removes a child of this node, without reparenting nephews.

Returns: True if the node has been removed

◆ removeChildNodeAt()

bool ncine::SceneNode::removeChildNodeAt ( unsigned int index )

Removes the child at the specified index, without reparenting nephews.

Returns: True if the node has been removed

◆ setLayer()

void ncine::SceneNode::setLayer ( uint16_t layer )

inline

Sets the node rendering layer.

Note: The lowest value (bottom) is 0 and the highest one (top) is 65535. When the value is 0, the final layer value is inherited from the parent.

◆ setParent()

bool ncine::SceneNode::setParent ( SceneNode * parentNode )

Sets the parent node.

Returns: True if the parent has been set

◆ swapChildPointer()

void ncine::SceneNode::swapChildPointer	(	SceneNode *	first,
		SceneNode *	second
	)

protected

Swaps the child pointer of a parent when moving an object.

Note: It is faster than calling setParent() on the first child and removeChildNode() on the second one

◆ swapChildrenNodes()

bool ncine::SceneNode::swapChildrenNodes	(	unsigned int	firstIndex,
		unsigned int	secondIndex
	)

Swaps two children at the specified indices.

Returns: True if the two nodes have been swapped

◆ swapNodeBack()

bool ncine::SceneNode::swapNodeBack ( )

Brings this node one node back in the parent's list of children.

Returns: True if the node has been brought one position back

◆ swapNodeForward()

bool ncine::SceneNode::swapNodeForward ( )

Brings this node one node forward in the parent's list of children.

Returns: True if the node has been brought one position forward

◆ unlinkChildNode()

bool ncine::SceneNode::unlinkChildNode ( SceneNode * childNode )

Removes a child of this node reparenting nephews as children.

Returns: True if the node has been unlinked

◆ update()

void ncine::SceneNode::update ( float frameTime )

virtual

Called once every frame to update the node.

Note: The frame time is expressed in seconds.

Reimplemented in ncine::AnimatedSprite, and ncine::ParticleSystem.

Member Data Documentation

◆ anchorPoint_

Vector2f ncine::SceneNode::anchorPoint_

protected

The anchor point for transformations, in pixels

Note: The default point is the center

◆ childOrderIndex_

unsigned int ncine::SceneNode::childOrderIndex_

protected

The order index of this node among its siblings.

Note: The index is cached here to make siblings reordering methods faster

◆ color_

Color ncine::SceneNode::color_

protected

Node color for transparency and translucency.

Even if the base scene node is not always drawable, it carries color information to easily pass that information to its children.

◆ layer_

uint16_t ncine::SceneNode::layer_

protected

The node rendering layer.

Even if the base scene node is not always drawable, it carries layer information to easily pass that information to its children.

◆ withVisitOrder_

bool ncine::SceneNode::withVisitOrder_

protected

When enabled the visit order is used to resolve the drawing order of same layer nodes.

Note: This flag cannot be changed by the user, it is derived from the parent and this node states

The documentation for this class was generated from the following files:

include/ncine/SceneNode.h
src/graphics/SceneNode.cpp

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SceneNode() [1/3]

◆ SceneNode() [2/3]

◆ SceneNode() [3/3]

Member Function Documentation

◆ absLayer()

◆ addChildNode()

◆ childOrderIndex()

◆ deleteChildrenOnDestruction()

◆ draw()

◆ removeAllChildrenNodes()

◆ removeChildNode()

◆ removeChildNodeAt()

◆ setLayer()

◆ setParent()

◆ swapChildPointer()

◆ swapChildrenNodes()

◆ swapNodeBack()

◆ swapNodeForward()

◆ unlinkChildNode()

◆ update()

Member Data Documentation

◆ anchorPoint_

◆ childOrderIndex_

◆ color_

◆ layer_

◆ withVisitOrder_
