ncine::ParticleSystem Class Reference

The class representing a particle system. More...

#include <ParticleSystem.h>

Inheritance diagram for ncine::ParticleSystem:

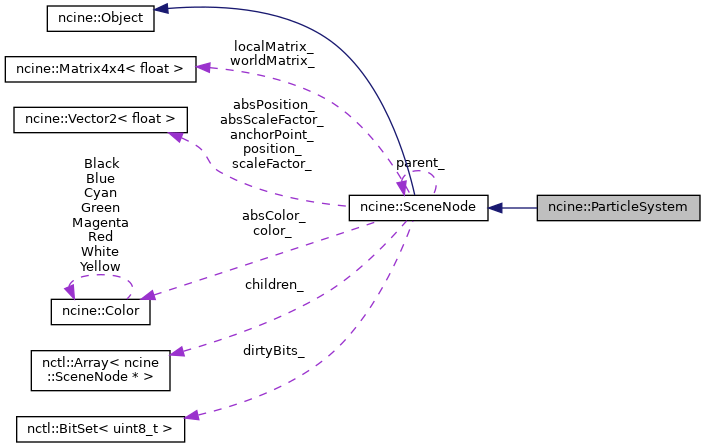

Collaboration diagram for ncine::ParticleSystem:

Public Member Functions
	ParticleSystem (SceneNode *parent, unsigned int count, Texture *texture)
	Constructs a particle system with the specified maximum amount of particles.
	ParticleSystem (SceneNode *parent, unsigned int count, Texture *texture, Recti texRect)
	Constructs a particle system with the specified maximum amount of particles and the specified texture rectangle.
	ParticleSystem (ParticleSystem &&)
	Default move constructor.
ParticleSystem &	operator= (ParticleSystem &&)
	Default move assignment operator.
ParticleSystem	clone () const
	Returns a copy of this object.
void	addAffector (nctl::UniquePtr< ParticleAffector > affector)
	Adds a particle affector.
void	clearAffectors ()
	Deletes all particle affectors.
void	emitParticles (const ParticleInitializer &init)
	Emits particles with the specified initialization parameters.
void	killParticles ()
	Kills all alive particles.
nctl::Array< nctl::UniquePtr< ParticleAffector > > &	affectors ()
	Returns the array of particle affectors.
const nctl::Array< nctl::UniquePtr< ParticleAffector > > &	affectors () const
	Returns the constant array of particle affectors.
bool	inLocalSpace (void) const
	Returns true if particles are positioned using the particle system as their origin.
void	setInLocalSpace (bool inLocalSpace)
	Sets or clears the local space flag, to move particles around the particle system or freely.
bool	isParticlesUpdateEnabled (void) const
	Returns true if particles are updating.
void	setParticlesUpdateEnabled (bool particlesUpdateEnabled)
	Enables or disables particles updating.
bool	areAffectorsEnabled (void) const
	Returns true if affectors are modifying particles properties.
void	setAffectorsEnabled (bool affectorsEnabled)
	Enables or disables affectors modifying particles properties.
unsigned int	numParticles () const
	Returns the total number of particles in the system.
unsigned int	numAliveParticles () const
	Returns the number of particles currently alive.
void	setTexture (Texture *texture)
	Sets the texture object for every particle in the system.
void	setTexRect (const Recti &rect)
	Sets the texture source rectangle for every particle in the system.
void	setAnchorPoint (float xx, float yy)
	Sets the transformation anchor point for every particle in the system.
void	setAnchorPoint (const Vector2f &point)
	Sets the transformation anchor point for every particle in the system with a Vector2f
void	setFlippedX (bool flippedX)
	Flips the texture rect horizontally for every particle in the system.
void	setFlippedY (bool flippedY)
	Flips the texture rect vertically for every particle in the system.
void	setBlendingPreset (DrawableNode::BlendingPreset blendingPreset)
	Sets the blending factors preset for every particle in the system.
void	setBlendingFactors (DrawableNode::BlendingFactor srcBlendingFactor, DrawableNode::BlendingFactor destBlendingFactor)
	Sets the source and destination blending factors for every particle in the system.
void	setLayer (uint16_t layer)
	Sets the rendering layer for every particle in the system.
void	update (float frameTime) override
	Called once every frame to update the node. More...
Public Member Functions inherited from ncine::SceneNode
	SceneNode (SceneNode *parent, float x, float y)
	Constructor for a node with a parent and a specified relative position. More...
	SceneNode (SceneNode *parent, const Vector2f &position)
	Constructor for a node with a parent and a specified relative position as a vector. More...
	SceneNode (SceneNode *parent)
	Constructor for a node with a parent and positioned in the relative origin. More...
	SceneNode ()
	Constructor for a node with no parent and positioned in the origin.
	~SceneNode () override
	The destructor will delete every child node.
	SceneNode (SceneNode &&other)
	Move constructor.
SceneNode &	operator= (SceneNode &&other)
	Move assignment operator.
SceneNode	clone () const
	Returns a copy of this object.
const SceneNode *	parent () const
	Returns the parent as a constant node, if there is any.
SceneNode *	parent ()
	Returns the parent node, if there is any.
bool	setParent (SceneNode *parentNode)
	Sets the parent node. More...
const nctl::Array< SceneNode * > &	children ()
	Returns the array of child nodes.
const nctl::Array< const SceneNode * > &	children () const
	Returns an array of constant child nodes.
bool	addChildNode (SceneNode *childNode)
	Adds a node as a child of this one. More...
bool	removeChildNode (SceneNode *childNode)
	Removes a child of this node, without reparenting nephews. More...
bool	removeChildNodeAt (unsigned int index)
	Removes the child at the specified index, without reparenting nephews. More...
bool	removeAllChildrenNodes ()
	Removes all children, without reparenting nephews. More...
bool	unlinkChildNode (SceneNode *childNode)
	Removes a child of this node reparenting nephews as children. More...
unsigned int	childOrderIndex () const
	Returns the child order index of this node or zero if it does not have a parent. More...
bool	swapChildrenNodes (unsigned int firstIndex, unsigned int secondIndex)
	Swaps two children at the specified indices. More...
bool	swapNodeForward ()
	Brings this node one node forward in the parent's list of children. More...
bool	swapNodeBack ()
	Brings this node one node back in the parent's list of children. More...
enum VisitOrderState	visitOrderState () const
	Returns true if the node visit order is used together with the layer.
void	setVisitOrderState (enum VisitOrderState visitOrderState)
	Enables the use of the node visit order together with the layer.
uint16_t	visitOrderIndex () const
	Returns the visit drawing order of the node.
virtual void	visit (RenderQueue &renderQueue, unsigned int &visitOrderIndex)
	Draws the node and visits its children.
virtual bool	draw (RenderQueue &renderQueue)
	Renders the node.
bool	isUpdateEnabled () const
	Returns true if the node is updating.
void	setUpdateEnabled (bool updateEnabled)
	Enables or disables node updating.
bool	isDrawEnabled () const
	Returns true if the node is drawing.
void	setDrawEnabled (bool drawEnabled)
	Enables or disables node drawing.
bool	isEnabled () const
	Returns true if the node is both updating and drawing.
void	setEnabled (bool isEnabled)
	Enables or disables both node updating and drawing.
Vector2f	position () const
	Returns node position relative to its parent.
Vector2f	absPosition () const
	Returns absolute node position.
void	setPosition (float x, float y)
	Sets the node position through two coordinates.
void	setPosition (const Vector2f &position)
	Sets the node position through a vector.
void	setPositionX (float x)
	Sets the X coordinate of the node position.
void	setPositionY (float y)
	Sets the Y coordinate of the node position.
void	move (float x, float y)
	Moves the node based on two offsets.
void	move (const Vector2f &position)
	Adds a move vector to the node current position.
void	moveX (float x)
	Moves the node by an offset on the X axis.
void	moveY (float y)
	Moves the node by an offset on the Y axis.
Vector2f	absAnchorPoint () const
	Gets the absolute transformation anchor point in pixels.
void	setAbsAnchorPoint (float x, float y)
	Sets the absolute transformation anchor point in pixels.
void	setAbsAnchorPoint (const Vector2f &point)
	Sets the absolute transformation anchor point in pixels with a Vector2f
const Vector2f &	scale () const
	Gets the node scale factors.
const Vector2f &	absScale () const
	Gets the node absolute scale factors.
void	setScale (float scaleFactor)
	Scales the node size both horizontally and vertically.
void	setScale (float scaleFactorX, float scaleFactorY)
	Scales the node size both horizontally and vertically.
void	setScale (const Vector2f &scaleFactor)
	Scales the node size both horizontally and vertically with a Vector2f
float	rotation () const
	Gets the node rotation in degrees.
float	absRotation () const
	Gets the node absolute rotation in degrees.
void	setRotation (float rotation)
	Sets the node rotation in degrees.
Color	color () const
	Gets the node color.
Color	absColor () const
	Gets the node absolute color.
void	setColor (Color color)
	Sets the node color through a Color object.
void	setColorF (Colorf color)
	Sets the node color through a Colorf object.
void	setColor (unsigned char red, unsigned char green, unsigned char blue, unsigned char alpha)
	Sets the node color through unsigned char components.
void	setColorF (float red, float green, float blue, float alpha)
	Sets the node color through float components.
unsigned char	alpha () const
	Gets the node alpha.
unsigned char	absAlpha () const
	Gets the node absolute alpha.
void	setAlpha (unsigned char alpha)
	Sets the node alpha through an unsigned char component.
void	setAlphaF (float alpha)
	Sets the node alpha through a float component.
uint16_t	layer () const
	Gets the node rendering layer.
uint16_t	absLayer () const
	Gets the node absolute rendering layer. More...
void	setLayer (uint16_t layer)
	Sets the node rendering layer. More...
const Matrix4x4f &	worldMatrix () const
	Gets the node world matrix.
void	setWorldMatrix (const Matrix4x4f &worldMatrix)
	Sets the node world matrix (only useful when called inside onPostUpdate())
const Matrix4x4f &	localMatrix () const
	Gets the node local matrix.
void	setLocalMatrix (const Matrix4x4f &localMatrix)
	Sets the node local matrix.
bool	deleteChildrenOnDestruction () const
	Gets the delete children on destruction flag. More...
void	setDeleteChildrenOnDestruction (bool shouldDeleteChildrenOnDestruction)
	Sets the delete children on destruction flag.
unsigned long int	lastFrameUpdated () const
	Returns the last frame in which any of the viewports have updated this node.
Public Member Functions inherited from ncine::Object
	Object (ObjectType type)
	Constructs an object with a specified type and adds it to the index.
	Object (ObjectType type, const char *name)
	Constructs an object with a specified type and name and adds it to the index.
virtual	~Object ()
	Removes an object from the index and then destroys it.
	Object (Object &&other)
	Move constructor.
Object &	operator= (Object &&other)
	Move assignment operator.
unsigned int	id () const
	Returns the object identification number.
ObjectType	type () const
	Returns the object type (RTTI)
const char *	name () const
	Returns the object name.
void	setName (const char *name)
	Sets the object name.

Static Public Member Functions
static ObjectType	sType ()
Static Public Member Functions inherited from ncine::SceneNode
static ObjectType	sType ()
Static Public Member Functions inherited from ncine::Object
static ObjectType	sType ()
	Static method to return class type.
template<class T >
static T *	fromId (unsigned int id)
	Returns a casted pointer to the object with the specified id, if any exists.

Protected Member Functions
	ParticleSystem (const ParticleSystem &other)
	Protected copy constructor used to clone objects.
Protected Member Functions inherited from ncine::SceneNode
SceneNode &	operator= (const SceneNode &)=delete
	Deleted assignment operator.
	SceneNode (const SceneNode &other)
	Protected copy constructor used to clone objects.
void	swapChildPointer (SceneNode *first, SceneNode *second)
	Swaps the child pointer of a parent when moving an object. More...
virtual void	transform ()
Protected Member Functions inherited from ncine::Object
	Object (const Object &other)
	Protected copy constructor used to clone objects.

Additional Inherited Members
Public Types inherited from ncine::SceneNode
enum class	VisitOrderState { ENABLED , DISABLED , SAME_AS_PARENT }
Public Types inherited from ncine::Object
enum class	ObjectType {   BASE = 0 , TEXTURE , SHADER , SCENENODE ,   SPRITE , MESH_SPRITE , ANIMATED_SPRITE , PARTICLE ,   PARTICLE_SYSTEM , FONT , TEXTNODE , AUDIOBUFFER ,   AUDIOBUFFER_PLAYER , AUDIOSTREAM_PLAYER }
	Object types.
Static Public Attributes inherited from ncine::SceneNode
static const float	MinRotation = 0.5f
	The minimum amount of rotation to trigger a sine and cosine calculation.
Static Public Attributes inherited from ncine::Object
static const unsigned int	MaxNameLength = 128
	Maximum length for an object name.
Protected Types inherited from ncine::SceneNode
enum	DirtyBitPositions {   TransformationBit = 0 , ColorBit = 1 , SizeBit = 2 , TextureBit = 3 ,   AabbBit = 4 , TransformationUploadBit = 5 , ColorUploadBit = 6 }
	Bit positions inside the dirty bitset.
Protected Attributes inherited from ncine::SceneNode
bool	updateEnabled_
bool	drawEnabled_
SceneNode *	parent_
	A pointer to the parent node.
nctl::Array< SceneNode * >	children_
	The array of child nodes.
unsigned int	childOrderIndex_
	The order index of this node among its siblings. More...
bool	withVisitOrder_
	When enabled the visit order is used to resolve the drawing order of same layer nodes. More...
enum VisitOrderState	visitOrderState_
	The visit order state of this node.
uint16_t	visitOrderIndex_
	The visit order index of this node.
Vector2f	position_
	The node relative position.
Vector2f	anchorPoint_
Vector2f	scaleFactor_
	Horizontal and vertical scale factors for node size.
float	rotation_
	Degrees for clock-wise node rotation in degrees.
Color	color_
	Node color for transparency and translucency. More...
uint16_t	layer_
	The node rendering layer. More...
Vector2f	absPosition_
	Absolute position as calculated by the transform() function.
Vector2f	absScaleFactor_
	Absolute horizontal and vertical scale factors as calculated by the transform() function.
float	absRotation_
	Absolute node rotation as calculated by the transform() function.
Color	absColor_
	Absolute node color as calculated by the transform() function.
uint16_t	absLayer_
	Absolute node rendering layer as calculated by the transform() function.
Matrix4x4f	worldMatrix_
	World transformation matrix (calculated from local and parent's world)
Matrix4x4f	localMatrix_
	Local transformation matrix.
bool	shouldDeleteChildrenOnDestruction_
	A flag indicating whether the destructor should also delete all children.
nctl::BitSet< uint8_t >	dirtyBits_
	Bitset that stores the various dirty states bits.
unsigned long int	lastFrameUpdated_
	The last frame any viewport updated this node.
Protected Attributes inherited from ncine::Object
ObjectType	type_
	Object type.

Detailed Description

The class representing a particle system.

Member Function Documentation

update()

void ncine::ParticleSystem::update ( float  frameTime )

overridevirtual

Called once every frame to update the node.

Note

The frame time is expressed in seconds.

Reimplemented from ncine::SceneNode.

---

The documentation for this class was generated from the following files:

• include/ncine/ParticleSystem.h
• src/graphics/ParticleSystem.cpp
