Audio player interface class. More...

#include <IAudioPlayer.h>

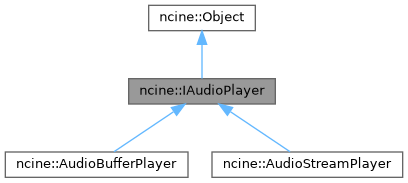

Inheritance diagram for ncine::IAudioPlayer:

[legend]

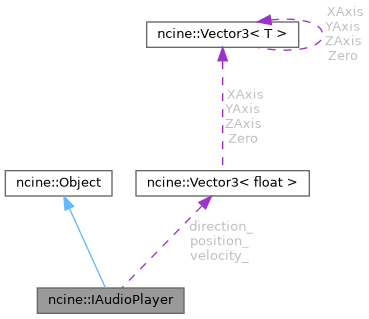

Collaboration diagram for ncine::IAudioPlayer:

[legend]

Public Types
enum class	PlayerState { INITIAL = 0 , PLAYING , PAUSED , STOPPED }
	Player state.

Public Types inherited from ncine::Object
enum class	ObjectType { BASE = 0 , TEXTURE , SHADER , SCENENODE , SPRITE , MESH_SPRITE , ANIMATED_SPRITE , PARTICLE , PARTICLE_SYSTEM , FONT , TEXTNODE , AUDIOBUFFER , AUDIOBUFFER_PLAYER , AUDIOSTREAM_PLAYER }
	Object types.

Public Member Functions
	IAudioPlayer (ObjectType type, const char *name)

	IAudioPlayer (ObjectType type)

	IAudioPlayer (IAudioPlayer &&)=default
	Default move constructor.

IAudioPlayer &	operator= (IAudioPlayer &&)=default
	Default move assignment operator.

bool	hasSource () const
	Returns true if a valid OpenAL source is currently assigned to the player.

unsigned int	sourceId () const
	Returns the OpenAL id of the player source.

virtual unsigned int	bufferId () const =0
	Returns the OpenAL id of the currently playing buffer.

virtual int	bytesPerSample () const =0
	Returns the number of bytes per sample.

virtual int	numChannels () const =0
	Returns the number of audio channels of the currently playing buffer.

virtual int	frequency () const =0
	Returns the samples frequency of the currently playing buffer.

virtual unsigned long int	numSamples () const =0
	Returns the number of samples.

virtual float	duration () const =0
	Returns the duration in seconds.

virtual unsigned long	bufferSize () const =0
	Returns the size of the currently playing buffer in bytes.

int	sampleOffset () const
	Returns the playback position expressed in samples.

void	setSampleOffset (int offset)
	Sets the playback position expressed in samples.

bool	isSourceLocked () const
	Returns true if the OpenAL source is locked.

void	setSourceLocked (bool sourceLocked)
	Locks an OpenAL source so it is not released to the pool when the player stops.

virtual void	play ()=0
	Starts playing.

virtual void	pause ()=0
	Pauses playing.

virtual void	stop ()=0
	Stops playing and rewinds.

PlayerState	state () const
	Returns the state of the player.

bool	isPlaying () const
	Returns true if the player is playing.

bool	isPaused () const
	Returns true if the player is paused.

bool	isStopped () const
	Returns true if the player is stopped.

bool	isLooping () const
	Returns the looping property of the player.

void	setLooping (bool isLooping)
	Sets the looping property of the player.

float	gain () const
	Returns the player gain value.

void	setGain (float gain)
	Sets the player gain value.

float	pitch () const
	Returns the player pitch value.

void	setPitch (float pitch)
	Sets the player pitch value.

Vector3f	position () const
	Returns the player position vector.

void	setPosition (const Vector3f &position)
	Sets the player position vector.

void	setPosition (float x, float y, float z)
	Sets the player position vector through components.

Vector3f	velocity () const
	Returns the player velocity vector.

void	setVelocity (const Vector3f &velocity)
	Sets the player velocity vector.

void	setVelocity (float x, float y, float z)
	Sets the player velocity vector through components.

Vector3f	direction () const
	Returns the player direction vector.

void	setDirection (const Vector3f &direction)
	Sets the player direction vector.

void	setDirection (float x, float y, float z)
	Sets the player direction vector through components.

float	coneInnerAngle () const
	Returns the player inside angle of the sound cone in degrees.

void	setConeInnerAngle (float coneAngle)
	Sets the player inside angle of the sound cone in degrees.

float	coneOuterAngle () const
	Returns the player outside angle of the sound cone in degrees.

void	setConeOuterAngle (float coneAngle)
	Sets the player outside angle of the sound cone in degrees.

float	coneOuterGain () const
	Returns the player multiplication factor to determine the gain outside the cone.

void	setConeOuterGain (float gain)
	Sets the player multiplication factor to determine the gain outside the cone.

Public Member Functions inherited from ncine::Object
	Object (ObjectType type)
	Constructs an object with a specified type and adds it to the index.

	Object (ObjectType type, const char *name)
	Constructs an object with a specified type and name and adds it to the index.

virtual	~Object ()
	Removes an object from the index and then destroys it.

	Object (Object &&other)
	Move constructor.

Object &	operator= (Object &&other)
	Move assignment operator.

unsigned int	id () const
	Returns the object identification number.

ObjectType	type () const
	Returns the object type (RTTI)

const char *	name () const
	Returns the object name.

void	setName (const char *name)
	Sets the object name.

Static Public Attributes
static const float	MinGain = 0.0f

static const float	DefaultGain = 1.0f

static const float	MaxGain = 1.0f

static const float	MinPitch = 0.5f

static const float	DefaultPitch = 1.0f

static const float	MaxPitch = 2.0f

static const float	MinConeAngle = 0.0f

static const float	DefaultConeAngle = 360.0f

static const float	MaxConeAngle = 360.0f

static const float	MinConeOuterGain = 0.0f

static const float	DefaultConeOuterGain = 0.0f

static const float	MaxConeOuterGain = 1.0f

static const float	MinAirAbsorptionFactor = 0.0f

static const float	DefaultAirAbsorptionFactor = 0.0f

static const float	MaxAirAbsorptionFactor = 10.0f

static const float	MinRoomRolloffFactor = 0.0f

static const float	DefaultRoomRolloffFactor = 0.0f

static const float	MaxRoomRolloffFactor = 10.0f

static const float	MinConeOuterGainHF = 0.0f

static const float	DefaultConeOuterGainHF = 0.0f

static const float	MaxConeOuterGainHF = 1.0f

Static Public Attributes inherited from ncine::Object
static const unsigned int	MaxNameLength = 128
	Maximum length for an object name.

Protected Member Functions
virtual void	updateState ()=0
	Updates the state of the player if the source has finished playing.

void	applySourceProperties ()
	Applies source properties after registering a player.

Protected Member Functions inherited from ncine::Object
	Object (const Object &other)
	Protected copy constructor used to clone objects.

Protected Attributes
unsigned int	sourceId_
	The OpenAL source id.

bool	sourceLocked_
	The flag indicating if an OpenAL source is locked and never released to the pool.

PlayerState	state_
	Current player state.

bool	isLooping_
	Looping status flag.

float	gain_
	Player gain value.

float	pitch_
	Player pitch value.

Vector3f	position_
	Player position in space.

Vector3f	velocity_
	Player velocity in space.

Vector3f	direction_
	Player direction in space.

float	coneInnerAngle_
	Inside angle of the sound cone in degrees.

float	coneOuterAngle_
	Outside angle of the sound cone in degrees.

float	coneOuterGain_
	Multiplication factor to determine the gain outside the cone.

float	airAbsorptionFactor_
	Player air absorption factor value.

float	roomRooloffFactor_
	Player room rolloff factor value.

float	coneOuterGainHF_
	Player cone outer gain HF value.

unsigned int	effectSlotId_
	The OpenAL effect slot id to use when playing.

unsigned int	auxFilterId_
	The OpenAL auxiliary filter id to use when playing.

unsigned int	directFilterId_
	The OpenAL direct filter id to use when playing.

Protected Attributes inherited from ncine::Object
ObjectType	type_
	Object type.

Friends
class	ALAudioDevice

Additional Inherited Members
Static Public Member Functions inherited from ncine::Object
static ObjectType	sType ()
	Static method to return class type.

template<class T >
static T *	fromId (unsigned int id)
	Returns a casted pointer to the object with the specified id, if any exists.

Detailed Description

Audio player interface class.

Member Function Documentation

◆ bufferId()

virtual unsigned int ncine::IAudioPlayer::bufferId ( ) const

pure virtual

Returns the OpenAL id of the currently playing buffer.

Implemented in ncine::AudioBufferPlayer, and ncine::AudioStreamPlayer.

◆ bufferSize()

virtual unsigned long ncine::IAudioPlayer::bufferSize ( ) const

pure virtual

Returns the size of the currently playing buffer in bytes.

Implemented in ncine::AudioBufferPlayer, and ncine::AudioStreamPlayer.

◆ bytesPerSample()

virtual int ncine::IAudioPlayer::bytesPerSample ( ) const

pure virtual

Returns the number of bytes per sample.

Implemented in ncine::AudioBufferPlayer, and ncine::AudioStreamPlayer.

◆ duration()

virtual float ncine::IAudioPlayer::duration ( ) const

pure virtual

Returns the duration in seconds.

Implemented in ncine::AudioBufferPlayer, and ncine::AudioStreamPlayer.

◆ frequency()

virtual int ncine::IAudioPlayer::frequency ( ) const

pure virtual

Returns the samples frequency of the currently playing buffer.

Implemented in ncine::AudioBufferPlayer, and ncine::AudioStreamPlayer.

◆ numChannels()

virtual int ncine::IAudioPlayer::numChannels ( ) const

pure virtual

Returns the number of audio channels of the currently playing buffer.

Implemented in ncine::AudioBufferPlayer, and ncine::AudioStreamPlayer.

◆ numSamples()

virtual unsigned long int ncine::IAudioPlayer::numSamples ( ) const

pure virtual

Returns the number of samples.

Implemented in ncine::AudioBufferPlayer, and ncine::AudioStreamPlayer.

◆ pause()

virtual void ncine::IAudioPlayer::pause ( )

pure virtual

Pauses playing.

Implemented in ncine::AudioBufferPlayer, and ncine::AudioStreamPlayer.

◆ play()

virtual void ncine::IAudioPlayer::play ( )

pure virtual

Starts playing.

Implemented in ncine::AudioBufferPlayer, and ncine::AudioStreamPlayer.

◆ setDirection() [1/2]

void ncine::IAudioPlayer::setDirection ( const Vector3f & direction )

Sets the player direction vector.

Note: Setting all components to zero will make the player omnidirectional

◆ setDirection() [2/2]

void ncine::IAudioPlayer::setDirection	(	float	x,
		float	y,
		float	z
	)

Sets the player direction vector through components.

Note: Setting all components to zero will make the player omnidirectional

◆ setSourceLocked()

void ncine::IAudioPlayer::setSourceLocked ( bool sourceLocked )

Locks an OpenAL source so it is not released to the pool when the player stops.

Note: Locking an OpenAL source can be useful to retain source, effect, and filter properties

◆ stop()

virtual void ncine::IAudioPlayer::stop ( )

pure virtual

Stops playing and rewinds.

Implemented in ncine::AudioBufferPlayer, and ncine::AudioStreamPlayer.

◆ updateState()

virtual void ncine::IAudioPlayer::updateState ( )

protectedpure virtual

Updates the state of the player if the source has finished playing.

It is called every frame by the IAudioDevice class and it is also responsible for buffer queueing/unqueueing in stream players.

Implemented in ncine::AudioBufferPlayer, and ncine::AudioStreamPlayer.

Member Data Documentation

◆ coneInnerAngle_

float ncine::IAudioPlayer::coneInnerAngle_

protected

Inside angle of the sound cone in degrees.

Note: The default value of 360 means that the inner angle covers the entire world.

◆ coneOuterAngle_

float ncine::IAudioPlayer::coneOuterAngle_

protected

Outside angle of the sound cone in degrees.

Note: The default value of 360 means that the outer angle covers the entire world.

◆ direction_

Vector3f ncine::IAudioPlayer::direction_

protected

Player direction in space.

Note: If all components are zero the player is omnidirectional

The documentation for this class was generated from the following files:

include/ncine/IAudioPlayer.h
src/audio/IAudioPlayer.cpp

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ bufferId()

◆ bufferSize()

◆ bytesPerSample()

◆ duration()

◆ frequency()

◆ numChannels()

◆ numSamples()

◆ pause()

◆ play()

◆ setDirection() [1/2]

◆ setDirection() [2/2]

◆ setSourceLocked()

◆ stop()

◆ updateState()

Member Data Documentation

◆ coneInnerAngle_

◆ coneOuterAngle_

◆ direction_
