It represents the interface to the graphics device where everything is rendered. More...

#include <IGfxDevice.h>

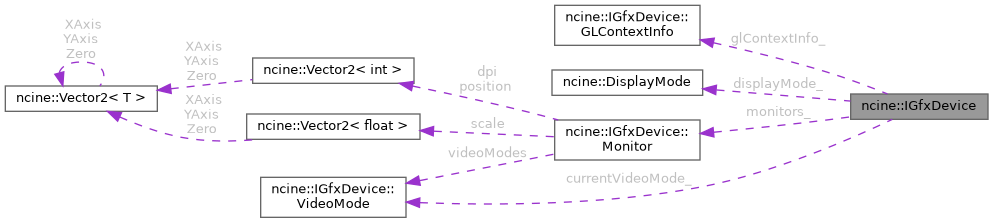

Collaboration diagram for ncine::IGfxDevice:

[legend]

Classes
struct	GLContextInfo
	Contains the attributes to create an OpenGL context. More...

struct	Monitor
	A structure representing a connected monitor. More...

struct	VideoMode
	A structure representing a video mode supported by a monitor. More...

struct	WindowMode
	A structure used to initialize window properties. More...

Public Member Functions
	IGfxDevice (const WindowMode &windowMode, const GLContextInfo &glContextInfo, const DisplayMode &displayMode)

virtual void	setSwapInterval (int interval)=0
	Sets the number of vertical blanks to occur before a buffer swap. More...

bool	isFullScreen () const
	Returns true if the device renders in full screen.

virtual void	setFullScreen (bool fullScreen)=0
	Sets the full screen flag of the window.

bool	isResizable () const
	Returns true if the window is resizable.

virtual int	windowPositionX () const
	Returns the window horizontal position.

virtual int	windowPositionY () const
	Returns the window vertical position.

virtual const Vector2i	windowPosition () const
	Returns the window position as a `Vector2i` object.

virtual void	setWindowPosition (int x, int y)=0
	Sets the position of the application window with two integers.

void	setWindowPosition (Vector2i position)
	Sets the position of the application window with a `Vector2i` object.

int	width () const
	Returns the window or video mode width in screen coordinates.

int	height () const
	Returns the window or video mode height in screen coordinates.

Vector2i	resolution () const
	Returns the window or video mode resolution in screen coordinates as a `Vector2i` object.

Rectf	screenRect () const
	Returns the window or video mode resolution in screen coordinates as a `Rectf` object.

float	aspect () const
	Returns the window or video mode resolution aspect ratio.

virtual void	setWindowSize (int width, int height)=0
	Sets the window size with two integers. More...

void	setWindowSize (Vector2i size)
	Sets the window size with a `Vector2i` object. More...

int	drawableWidth () const
	Returns the window width in pixels. More...

int	drawableHeight () const
	Returns the window height in pixels. More...

Vector2i	drawableResolution () const
	Returns the window resolution in pixels as a `Vector2i` object.

Rectf	drawableScreenRect () const
	Returns the window resolution in pixels as a `Rectf` object.

float	drawableAspect () const
	Returns the window drawable resolution aspect ratio.

virtual void	setWindowTitle (const char *windowTitle)=0
	Sets the application window title.

virtual void	setWindowIcon (const char *windowIconFilename)=0
	Sets the application window icon.

virtual void	flashWindow () const
	Highlights the application window to notify the user.

const GLContextInfo &	glContextInfo () const
	Returns the OpenGL context creation attributes.

const DisplayMode &	displayMode () const
	Returns display mode.

unsigned int	numMonitors () const
	Returns the number of connected monitors.

virtual unsigned int	primaryMonitorIndex () const
	Returns the array index of the primary monitor. More...

virtual unsigned int	windowMonitorIndex () const
	Returns the array index of the monitor associated with the window.

const Monitor &	monitor (unsigned int index) const
	Returns the specified monitor.

const Monitor &	monitor () const
	Returns the monitor that hosts the window.

virtual const VideoMode &	currentVideoMode (unsigned int monitorIndex) const =0
	Returns the current video mode for the specified monitor.

const VideoMode &	currentVideoMode () const
	Returns the current video mode for the monitor that hosts the window.

virtual bool	setVideoMode (unsigned int modeIndex)
	Sets the video mode that will be used in full screen by the monitor that hosts the window. More...

float	windowScalingFactor () const
	Returns the scaling factor for application window.

Static Public Attributes
static const unsigned int	MaxMonitors = 4

static const unsigned int	MaxVideoModes = 128

Protected Member Functions
void	initWindowScaling (const WindowMode &windowMode)
	Scales the window size by the display factor before creating it for the first time.

void	initGLViewport ()
	Inits the OpenGL viewport based on the drawable resolution.

int	containingMonitorIndex (int x, int y, int width, int height) const
	Returns the monitor index that contains the center of the specified rectangle, or -1 if its center is outside the virtual screen. More...

int	containingMonitorIndex (const Recti &rect) const
	Returns the monitor index that contains the center of the specified rectangle as a `Recti` object, or -1 if its center is outside the virtual screen. More...

int	containingMonitorIndex (const WindowMode &windowMode) const
	Returns the monitor index that contains the center of the specified rectangle as a `WindowMode` object, or -1 if its center is outside the virtual screen. More...

int	containingMonitorIndex (int x, int y) const
	Returns the monitor index that contains the specified point, or -1 if the point is outside the virtual screen.

int	containingMonitorIndex (const Vector2i &point) const
	Returns the monitor index that contains the specified point as a `Vector2i` object, or -1 if the point is outside the virtual screen.

virtual void	updateMonitors ()
	Updates the array of connected monitors.

Protected Attributes
int	width_
	Window width in screen coordinates.

int	height_
	Window height in screen coordinates.

int	drawableWidth_
	Window width in pixels (for HiDPI screens)

int	drawableHeight_
	Window height in pixels (for HiDPI screens)

bool	isFullScreen_
	Whether rendering occurs in full screen.

bool	isResizable_
	Whether the window is resizable.

GLContextInfo	glContextInfo_
	OpenGL context creation attributes.

DisplayMode	displayMode_
	Display properties.

Monitor	monitors_ [MaxMonitors]

unsigned int	numMonitors_

VideoMode	currentVideoMode_
	Used as a cache to avoid searching the current video mode in a monitor's array.

bool	backendScalesWindowSize_
	A flag indicating if the backend is responsible for scaling the window size. More...

float	previousScalingFactor_
	The window scaling factor from last frame.

Static Protected Attributes
static const float	DefaultDpi = 96.0f
	The default value used for a monitor DPI when the real vaue cannot be queried.

Friends
class	Application

Detailed Description

It represents the interface to the graphics device where everything is rendered.

Member Function Documentation

◆ containingMonitorIndex() [1/3]

int ncine::IGfxDevice::containingMonitorIndex ( const Recti & rect ) const

inlineprotected

Returns the monitor index that contains the center of the specified rectangle as a Recti object, or -1 if its center is outside the virtual screen.

Note: The special WindowPositionIgnore value can be used for the x and y variables

◆ containingMonitorIndex() [2/3]

int ncine::IGfxDevice::containingMonitorIndex ( const WindowMode & windowMode ) const

inlineprotected

Returns the monitor index that contains the center of the specified rectangle as a WindowMode object, or -1 if its center is outside the virtual screen.

Note: The special WindowPositionIgnore value can be used for the x and y variables

◆ containingMonitorIndex() [3/3]

int ncine::IGfxDevice::containingMonitorIndex	(	int	x,
		int	y,
		int	width,
		int	height
	)		const

protected

Returns the monitor index that contains the center of the specified rectangle, or -1 if its center is outside the virtual screen.

Note: The special WindowPositionIgnore value can be used for the x and y variables

◆ drawableHeight()

int ncine::IGfxDevice::drawableHeight ( ) const

inline

Returns the window height in pixels.

It may differs from height() on HiDPI screens

◆ drawableWidth()

int ncine::IGfxDevice::drawableWidth ( ) const

inline

Returns the window width in pixels.

It may differs from width() on HiDPI screens

◆ primaryMonitorIndex()

virtual unsigned int ncine::IGfxDevice::primaryMonitorIndex ( ) const

inlinevirtual

Returns the array index of the primary monitor.

Note: This is usually the monitor where elements like the task bar or global menu bar are located.

◆ setSwapInterval()

virtual void ncine::IGfxDevice::setSwapInterval ( int interval )

pure virtual

Sets the number of vertical blanks to occur before a buffer swap.

An interval of -1 will enable adaptive v-sync if available

◆ setVideoMode()

virtual bool ncine::IGfxDevice::setVideoMode ( unsigned int modeIndex )

inlinevirtual

Sets the video mode that will be used in full screen by the monitor that hosts the window.

Note: Call this method before enabling full screen.

◆ setWindowSize() [1/2]

virtual void ncine::IGfxDevice::setWindowSize	(	int	width,
		int	height
	)

pure virtual

Sets the window size with two integers.

Note: If the application is in full screen this method will have no effect.

◆ setWindowSize() [2/2]

void ncine::IGfxDevice::setWindowSize ( Vector2i size )

inline

Sets the window size with a Vector2i object.

Note: If the application is in full screen this method will have no effect.

Member Data Documentation

◆ backendScalesWindowSize_

bool ncine::IGfxDevice::backendScalesWindowSize_

protected

A flag indicating if the backend is responsible for scaling the window size.

Note: Uses SDL_HINT_WINDOWS_DPI_SCALING on SDL >= 2.24.0 and GLFW_SCALE_TO_MONITOR on GLFW

The documentation for this class was generated from the following files:

include/ncine/IGfxDevice.h
src/graphics/IGfxDevice.cpp
