The interface class for parsing and dispatching input events. More...

#include <IInputManager.h>

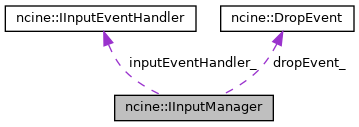

Collaboration diagram for ncine::IInputManager:

Public Types
enum class	MouseCursorMode { NORMAL , HIDDEN , DISABLED }

Public Member Functions
virtual const MouseState &	mouseState () const =0
	Returns current mouse state.

virtual const KeyboardState &	keyboardState () const =0
	Returns current keyboard state.

virtual bool	isJoyPresent (int joyId) const =0
	Returns `true` if the specified joystick is connected.

virtual const char *	joyName (int joyId) const =0
	Returns the name of the specified joystick.

virtual const char *	joyGuid (int joyId) const =0
	Returns the GUID of the specified joystick.

virtual int	joyNumButtons (int joyId) const =0
	Returns the number of available buttons for the specified joystick.

virtual int	joyNumHats (int joyId) const =0
	Returns the number of available hats for the specified joystick.

virtual int	joyNumAxes (int joyId) const =0
	Returns the number of available axes for the specified joystick.

virtual const JoystickState &	joystickState (int joyId) const =0
	Returns the state of the joystick.

bool	isJoyMapped (int joyId) const
	Returns `true` if the joystick has a valid mapping configuration. More...

const JoyMappedState &	joyMappedState (int joyId) const
	Returns the state of the mapped joystick.

void	deadZoneNormalize (Vector2f &joyVector, float deadZoneValue) const
	Modifies the joystick axis vector to account for a dead zone.

void	addJoyMappingsFromFile (const char *filename)
	Adds joystick mapping configurations from a text file.

void	addJoyMappingsFromStrings (const char **mappingStrings)
	Adds joystick mapping configurations from a strings array terminated by a `nullptr`

unsigned int	numJoyMappings () const
	Returns the current number of valid joystick mappings.

virtual bool	hasJoyVibration (int joyId) const =0
	Returns `true` if the specified joystick supports vibration.

virtual void	joyVibrate (int joyId, float lowFreqIntensity, float highFreqIntensity, unsigned int duration) const =0
	Vibrates the low (left) and high (right) frequency motors for the specified number of milliseconds. More...

MouseCursorMode	mouseCursorMode () const
	Returns current mouse cursor mode.

virtual void	setMouseCursorMode (MouseCursorMode mode)
	Sets the mouse cursor mode.

Static Public Member Functions
static IInputEventHandler *	handler ()
	Gets the current input event handler for the manager.

static void	setHandler (IInputEventHandler *inputEventHandler)
	Sets the input event handler for the manager.

Static Public Attributes
static const int	MaxNumJoysticks = 4

static const short int	MaxAxisValue = 32767

static const unsigned short int	MaxVibrationValue = 255
	The maximum vibration value supported by the backend. More...

static const float	LeftStickDeadZone = 7849 / 32767.0f

static const float	RightStickDeadZone = 8689 / 32767.0f

static const float	TriggerDeadZone = 30 / 32767.0f

Static Protected Attributes
static IInputEventHandler *	inputEventHandler_ = nullptr

static MouseCursorMode	mouseCursorMode_ = IInputManager::MouseCursorMode::NORMAL

static JoyMapping	joyMapping_

static DropEvent	dropEvent_

Detailed Description

The interface class for parsing and dispatching input events.

Member Enumeration Documentation

◆ MouseCursorMode

enum ncine::IInputManager::MouseCursorMode

strong

Enumerator

NORMAL

Mouse cursor behaves normally.

HIDDEN

Mouse cursor is hidden but behaves normally.

DISABLED

Mouse cursor is hidden and locked to the window.

Note: Mouse movement will be relative if supported (with no acceleration and no scaling)

Member Function Documentation

◆ isJoyMapped()

bool ncine::IInputManager::isJoyMapped ( int joyId ) const

Returns true if the joystick has a valid mapping configuration.

Note: Joystick will stay mapped in theonJoyConnected() and onJoyDisconnected() callbacks

◆ joyVibrate()

virtual void ncine::IInputManager::joyVibrate	(	int	joyId,
		float	lowFreqIntensity,
		float	highFreqIntensity,
		unsigned int	duration
	)		const

pure virtual

Vibrates the low (left) and high (right) frequency motors for the specified number of milliseconds.

Note: Intensity goes from 0 to 1. Each call to this function cancels any previous vibration effect, and calling it with zero intensity stops any vibrations.

Member Data Documentation

◆ MaxVibrationValue

const unsigned short int ncine::IInputManager::MaxVibrationValue = 255

static

The maximum vibration value supported by the backend.

Note: The reciprocal of this number can be used as the vibration resolution value.

The documentation for this class was generated from the following files:

include/ncine/IInputManager.h
src/android/AndroidInputManager.cpp
src/input/GlfwInputManager.cpp
src/input/IInputManager.cpp
src/input/Qt5InputManager.cpp
src/input/SdlInputManager.cpp
